Get started

Sending via SMTP

Omnivery supports sending messages using SMTP submission. SMTP submission is a great option for systems that support sending via a custom SMTP server. It is ideal for integrations where implementing an API would be time-consuming or expensive.

Sending using APIs should always be preferred as it provides much more efficient and comfortable integration for developers.

Omnivery supports sending via SMTP. Our servers at smtp.omnivery.net are listening on port 587. We support insecure connections, but we strongly recommend upgrading to TLS encryption using the STARTTLS command.

Use STARTTLS

Plaintext sessions are still accepted, but they are deprecated and will stop being supported. Always issue STARTTLS before authenticating, so your credentials are never sent in the clear.

Implicit TLS (SMTPS, port 465) is not offered. If your client defaults to port 465, change it to 587 with STARTTLS. Port 25 is our inbound MX and does not accept submission.

Domain setup

Make sure you have your sending domains set up first. Please read the documentation on setting up domains.

Setting up credentials

Sending messages using SMTP requires authentication with the correct credentials. Before you start, make sure you have the correct domain selected in the top domain selection menu. SMTP user credentials are managed in the Credentials menu on the SMTP users tab. You will see a list of existing SMTP users here and have the ability to add new ones if your account has sufficient rights.

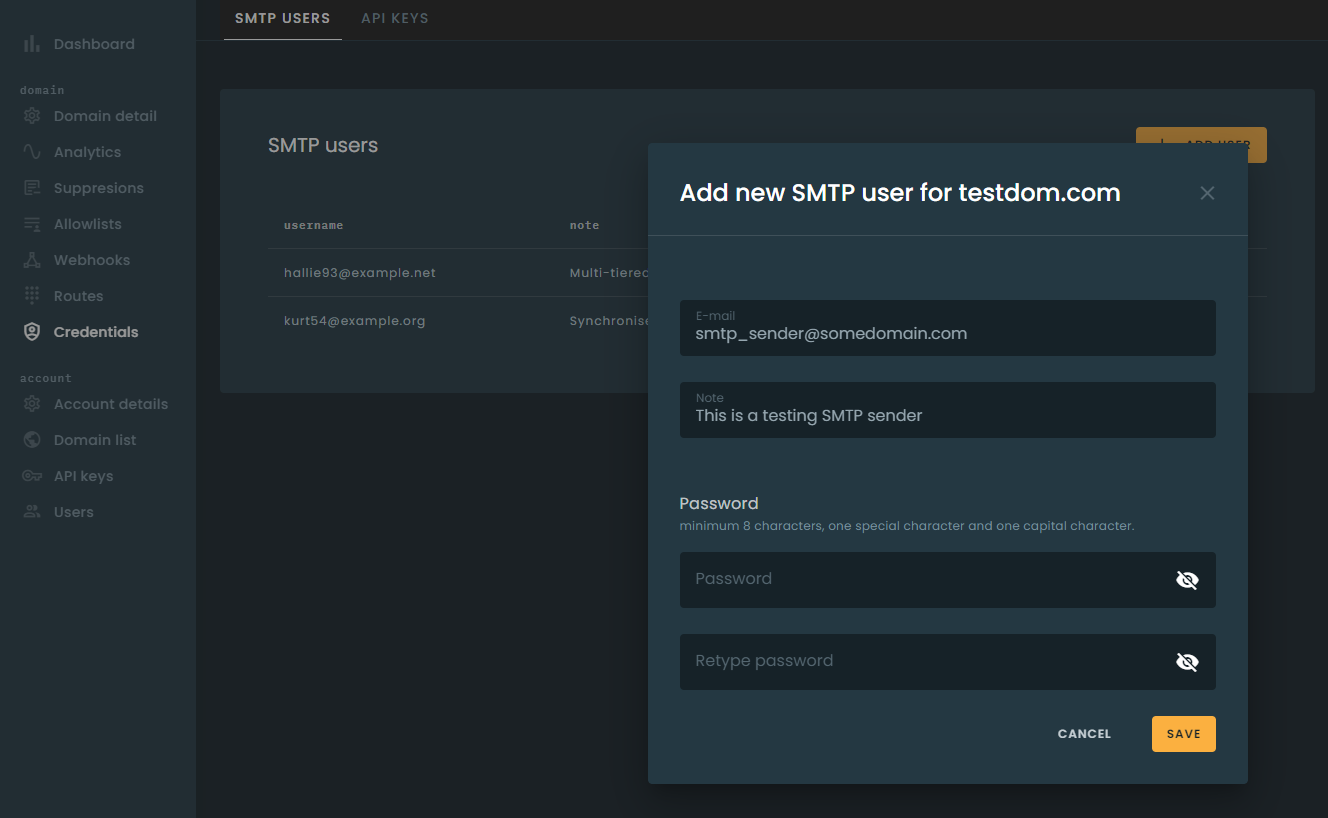

Click the Add user button and you will be presented with a dialog to enter the desired username (in the form of an email address), password, and note (to help you identify individual user accounts).

SMTP credentials

The email address you enter as a username does not necessarily have to be a working email address. Use of email addresses in domains under your control is strongly recommended.

Requirements

The SMTP communication must meet the following minimum requirements:

  • AUTH LOGIN or AUTH PLAIN must be performed to authenticate the session using credentials. CRAM-MD5 and other challenge-response mechanisms are not supported.
  • MAIL FROM address must be from the sending domain, e.g., if your sending domain is ov.emaildemos.com, the address passed in the command must be @ov.emaildemos.com.
  • RCPT TO command must be issued at least once. If multiple RCPT TO commands are issued, then all individual recipients will receive the same message but will be tracked independently. A single message may carry at most 50 recipients.

The DATA transfer of the message content must conform to RFC5322. In addition to the standard, we have the following requirements:

  • Exactly one From header is required. While the standard technically permits multiple From addresses, this is not supported by many large mailbox providers and would result in delivery issues.
  • Exactly one To header is required, and it must contain at least one address. Multiple recipients should be separated by a comma in the single To header.
  • At most one Cc header is allowed. Multiple recipients should be separated by a comma in the single Cc header.
  • Exactly one Subject header is required.

The From header address MUST be aligned with the sending domain, e.g., if your sending domain is ov.emaildemos.com, then your From header address must be either @ov.emaildemos.com or @emaildemos.com.

Alignment with a parent domain is accepted one level up only. If your sending domain is a.b.emaildemos.com, a From address of @emaildemos.com will be rejected.

  • The local part of a From or Reply-To address must not be quoted. Addresses such as "john smith"@example.com are rejected, because receiving systems do not agree on how to parse them.

  • MIME headers provided in DATA that do not conform to our standards or are in conflict with our standard headers will be removed or replaced. This includes Date, Message-ID, List-Unsubscribe, Feedback-ID and X-Mailer, which we set or rewrite on every message.

  • Senders MUST honor the 4xx and 5xx SMTP response codes as respectively defined by the SMTP standard. 4xx temporary failures should be retried at a later time with a minimum interval of 1 minute. 5xx permanent failures MUST NOT be retried, as such errors will not result in a different outcome no matter how many times they are retried.

SMTPUTF8 is supported, so internationalized addresses may be used.

Limits

Limit Value
Recipients per message 50 RCPT TO commands per transaction
Message size Set per domain on your account. The default is 10 MB
Connection rate 600 new connections per minute, per source IP address
Scheduled delivery Up to 3 days (72 hours) ahead
Failed logins 3 per username per minute, 3 per IP address per 5 minutes

The advertised SIZE is not your account limit

Our servers advertise a large SIZE value in the EHLO response. That is a server-wide ceiling, not your limit — the limit that applies to your messages is configured per domain and is considerably smaller (10 MB by default).

Because the size is checked once the message has been received, an oversized message is rejected with 552 after it has been transferred. Check your domain's configured limit rather than relying on SIZE.

Authentication failures

Repeated authentication failures temporarily lock out the username and the source IP address. The lockout is a 4xx temporary failure and clears by itself — wait and retry rather than looping. Verify your credentials before reconnecting, as repeated attempts extend the lockout.

Source IP addresses listed by Spamhaus are refused with a 5xx permanent failure and are blocked for 24 hours. Delisting at Spamhaus does not clear the block immediately.

Duplicate messages

Messages are deduplicated per sending domain. If the same recipient, subject and body are submitted more than once within 3 minutes, only the first copy is delivered.

Duplicates are accepted, then suppressed

A duplicate is accepted with a 250 response and is suppressed before delivery, so there is no SMTP error and no bounce. It is not lost track of: the message is logged with the rejected action and a duplicate suppression reason, and you can see it in your message logs in the UI. Note that suppressed duplicates are recorded in the logs only — they do not generate a webhook event.

If your application legitimately sends identical messages to the same recipient in quick succession (for example repeated password-reset requests), vary the message content or subject, otherwise only the first will arrive.

Passing message options

When sending a message via SMTP, you can pass additional sending options via custom MIME headers listed in the table below.

Headers that take a yes/no value accept yes, true, 1 or on to enable, and no, false, 0 or off to disable. Values are case-insensitive. A value we do not recognise is ignored, and your domain's configured default applies.

Header Description
X-OV-Tag Tag string used for aggregating stats. See Tagging for more information. You can mark a message with several categories by setting multiple X-OV-Tag headers. Multiple tags may also be comma-separated in a single header.
X-OV-testmode Enables sending in test mode. Pass yes if needed. See Sending in Test Mode.
X-OV-Track Toggles tracking on a per-message basis. See Tracking Messages for details. Pass yes or no. Overrides the domain-level setting.
X-OV-tracking_click Toggles click tracking on a per-message basis. Overrides domain-level setting. Pass yes or no. Only applies when tracking is enabled.
X-OV-tracking_open Toggles open tracking on a per-message basis. Overrides domain-level setting. Pass yes or no. Only applies when tracking is enabled.
X-OV-tracking-pixel-location-top Places the open-tracking pixel at the top of the message body instead of the bottom.
X-OV-Require-TLS Use this header to enforce TLS encryption during message delivery. Pass yes. If the receiving server does not offer TLS, delivery fails rather than falling back to an unencrypted connection. Only an affirmative value turns enforcement on; anything else leaves delivery at the default.
X-OV-Recipient-Variables Use this header to substitute recipient variables referenced in the message.
X-OV-Variables Use this header to attach custom JSON data to the message. Invalid JSON is rejected.
X-OV-Substitutions JSON object of substitutions applied to the message body, in the SendGrid style. Shared by every recipient. Applied only to a SendGrid submission - over SMTP, one that carries X-SMTPAPI; on its own over plain SMTP it is ignored. Invalid JSON is rejected.
X-OV-Recipient-Substitutions JSON object of substitutions keyed by recipient address, so one submission can carry different tokens per recipient. Applied only to a SendGrid submission, as above. Invalid JSON is rejected.
X-OV-Template Template filename to use to generate message content.
X-OV-Template-Variables Use this header to pass JSON data to the template. Unlike X-OV-Variables, data passed in this header will not be passed in the message headers.
X-OV-Deliver-By Schedules the message for delivery at the specified time, up to 3 days (72 hours) ahead; the value must be an RFC-2822 date with a numeric UTC offset, for example Fri, 03 Oct 2026 09:00:00 +0200.
X-OV-Callback-URL Set the webhook URL to post event data. Setting the URL at message level overrides the domain setting.
X-OV-Callback-Format Set the format of webhook calls to use. Supported formats are bloomreach, mailgun, sendgrid and sparkpost. The value is case-sensitive; an unrecognised value is ignored and the default format (mailgun) is used.
X-Campaign-ID Campaign name used to group statistics. X-Job-ID is accepted as a fallback when this header is absent.

Scheduled delivery

X-OV-Deliver-By must be an RFC-2822 date. A day name and seconds are optional, and the zone must be numeric — alphabetic zones such as GMT or UTC are not accepted, and neither is ISO-8601. If the zone is omitted the time is read as UTC.

Value Result
Fri, 03 Oct 2026 09:00:00 +0200 Accepted — the canonical form
3 Oct 2026 09:00 +0200 Accepted — no day name, no seconds
Fri, 03 Oct 2026 09:00:00 Accepted — read as UTC
Fri, 03 Oct 2026 09:00:00 GMT Rejected — alphabetic zone
2026-10-03T09:00:00+02:00 Rejected — ISO-8601 is not RFC-2822
A time more than 3 days ahead Rejected — the message is refused, not capped
A time in the past Accepted and sent immediately

The header is not delivered to the recipient, and a scheduled message is indistinguishable from an immediate one. Templating, tracking, the Date header and DKIM signing are all applied at the real send time rather than at submission. A message-level webhook set with X-OV-Callback-URL and X-OV-Callback-Format is kept for the scheduled message's events.

Headers that are accepted but ignored

The following headers are accepted for compatibility and currently have no effect: X-OV-Dkim, X-OV-Skip-Verification, X-OV-Time-Zone-Localize and X-OV-Delivery-Time-Optimize-Period. Do not rely on them.

Migrating from another provider

Existing X-Mailgun-* headers are accepted and translated automatically, so most Mailgun integrations work without changes:

X-Mailgun-Tag, X-Mailgun-Track, X-Mailgun-Track-Clicks, X-Mailgun-Track-Opens, X-Mailgun-Require-TLS, X-Mailgun-Drop-Message, X-Mailgun-Recipient-Variables, X-Mailgun-Deliver-By, X-Mailgun-Template and X-Mailgun-Template-Variables.

For SendGrid, the X-SMTPAPI header is parsed as JSON. Its unique_args are read as message variables and its sub object as substitutions. A malformed X-SMTPAPI header is rejected with a 5xx, rather than being silently ignored.

sub is read in both of SendGrid's shapes. A plain string value applies to every recipient. An array value is positional against the to list in the same header, so each recipient gets the value at their own index:

X-SMTPAPI: {"to": ["alice@example.com", "bob@example.com"],
            "sub": {"-name-": ["Alice", "Bob"]}}

If both a Mailgun header and its Omnivery equivalent are present, the X-Mailgun- value wins — it is translated into the X-OV- header and replaces whatever was there. Send only one of the pair.

SparkPost

The X-MSYS-API header is parsed as JSON and translated:

X-MSYS-API field Omnivery equivalent
campaign_id X-Campaign-ID
metadata X-OV-Variables
tags X-OV-Tag
options.open_tracking X-OV-tracking_open
options.click_tracking X-OV-tracking_click

As with the Mailgun headers, a translated value replaces the matching X-OV- header if you send both. The tracking options can switch tracking off, or on where your domain has tracking enabled. They cannot enable it for a domain that does not track.

All other fields are ignored, including options.transactional (whether a message is transactional is set on your domain), options.skip_suppression, options.ip_pool and options.sandbox. substitution_data is ignored too. SparkPost's own SMTP service does not apply it either, because its template language is API-only.

A tag that contains a comma is dropped, as is any value that contains a line break or other control character. The X-MSYS-API header itself is removed, but the values translated from it are not: like any X-OV- header you send, X-OV-Variables, X-OV-Tag and the tracking headers are delivered with the message, so metadata is visible to the recipient. If its value is not a valid JSON object, the message is rejected with a 5xx.

To use SparkPost-style templating, submit through the Sparkpost API rather than over SMTP. For per-recipient merge over SMTP, use X-OV-Recipient-Variables with %recipient.KEY% tags, which work regardless of which provider you are migrating from.

Error responses

Temporary failures (4xx) should be retried. Permanent failures (5xx) must not be.

Response Meaning
Too many connections, please slow down More than 600 new connections in a minute from your IP — a temporary 4xx; reuse connections rather than opening one per message
Too many login attempts, try again later Authentication lockout — wait, then retry with correct credentials
Too many recipients More than 50 RCPT TO commands in one transaction
Exactly one 'From' header must be present Zero or multiple From headers
Exactly one 'To' header must be present Zero or multiple To headers, or a To with no address
Only one 'Cc' header can be used More than one Cc header
We accept only messages with a singular Subject header Zero or multiple Subject headers. The session is disconnected
Sender address doesn't match the sending domain The From header is not aligned with the sending domain
From address local part must not be quoted A quoted local part, such as "john smith"@example.com
Reply-To address local part must not be quoted As above, for Reply-To
Reply-To address not aligned Reply-To alignment is enforced on your domain
Message too big - size of Nb exceeds your domains limit Larger than your domain's configured message size
Incorrectly formated variables. Use JSON to encode data X-OV-Variables is not valid JSON
Incorrectly formated substitutions. Use JSON to encode data X-OV-Substitutions is not valid JSON
Incorrectly formated recipient variables. Use JSON to encode data X-OV-Recipient-Variables is not valid JSON
Incorrectly formated template variables. Use JSON to encode data X-OV-Template-Variables is not valid JSON
Incorrectly formated recipient substitutions. Use JSON to encode data X-OV-Recipient-Substitutions is not valid JSON
Incorrectly formated X-SMTPAPI header. Use JSON to encode data X-SMTPAPI is not valid JSON
Incorrectly formated X-OV-Deliver-By header... The scheduling date is not a valid RFC-2822 date
Requested delivery time is more than 3 days in the future... Scheduled too far ahead
You are not allowed to send from this domain The domain is not on your account, or is disabled
Your IP is not welcome here The source IP is listed by Spamhaus and is blocked for 24 hours
Temporary local error, try again later A transient problem on our side — retry

Message security

Errors and attacks are not uncommon, and we do our best to protect your account. Check out how we deduplicate messages and how you can further secure your domain.
